Lab 12 - Networking & Firewalls

Lab Procedure
Part 1 - Networking Basics
Part 2 - Socket Programming
Part 3 - Security
Part 4 - Server Testing
Part 5 - Citations / Resources
Extra Credit - Tattle Tale
Submission
Rubric
Resources

Lab Procedure

Make sure to return to the AWS Learner Lab page (link in Pilot if you forgot to bookmark it) and hit “Start Lab” to turn on your sandbox / AWS instance.

Use ssh to connect to your AWS Ubuntu instance.

Go to the folder that contains your repository (likely named ceg2350-yourgithubusername).

Create a new directory, Lab12.

Create a file named README.md in the Lab12 folder. The Lab 12 Template can be copied from this link:

https://raw.githubusercontent.com/pattonsgirl/CEG2350/refs/heads/main/docs/Labs/Lab12/LabTemplate.md

You may refer to additional resources outside of the recommended ones provided. Cite any resource that contributes to your understanding in the Citations section of your lab answers, including the site and a summary of its assistance. If generative AI was used, include the system and prompts.

If you make mistakes with commands, note them! Writing down what went wrong and the correction will help your learning. If stuck, this aids TAs in understanding where you may have misunderstood or misconfigured a core step.

Part 1 - Networking Basics

Linux Network Command Cheat Sheet

The commands below are essential for gathering network information or network testing. Provide a brief statement / summary (not a multi-paragraph copy paste) about what each command does and find an internet resource that provides a basic guide to what the command does and examples of usage.

Command	Description	Resource
`hostname`
`ipconfig` (Powershell)
`ifconfig`
`ip a`
`route`
`iptables -L`
`Invoke-RestMethod ifconfig.me` (Powershell)
`curl <IP_or_hostname>`
`curl ifconfig.me` OR `curl ipinfo.io`
`ping <IP_or_hostname>`
`nslookup <IP_or_hostname>`
`traceroute <IP_or_hostname>`
`tracert <IP_or_hostname>` (Powershell)
`netstat -an \\| grep ESTABLISHED`
`nmap -p <IP_or_hostname>`
`tcpdump -i <networkinterface> -n host <IP_or_hostname>`

Network Info

Find network information for the following systems using the commands and resources from above:

your host OS on your PC
your AWS instance
- Note: you may need to install the appropriate network utilities to use commands like ifconfig

Only complete this for the internet accessible network the system is connected to:

usually eth0 for your AWS instance
usually Wireless LAN adapter Wi-Fi for your laptop

For each system:

Use a command to identify the system’s network information. Copy the output into your lab writeup.
Use the network info and other commands to fill in the following table for the system’s network information:

Setting	Value
Hostname of the device
MAC address of the NIC
Private IPv4 address
Subnet mask
Gateway address
DHCP address (if enabled)
DNS server address
Public IPv4 address

Useful Notes

At home, the gateway address is typically the same as your DHCP address. It basically says, “use the router for all of it”.
Use nslookup to find the DNS server for hostname lookups. At home this may be your ISP DNS server, sometimes it is just the router IP again.
To resolve the public IPv4 you are using from your ISP, check sites like ipinfo.io or ifconfig.me. AWS instances have public IPs associated with them.

Resources on parsing ipconfig, ifconfig / ip output:

Part 2 - Socket Programming

Review the following resource to get an overall feel for the difference between ports, sockets, and URLs:

Ports, Sockets, and URLs

We have provided tar archives of Java and Python client and server source code that uses the socket library.

Download and extract the tar archive of choice to your GitHub repository folder in Lab12.

Make a commit of the original source code files
Edit the both the client and server source code files - add comments to help you understand what it is doing. Commit and push your changes.
- Cite sources that helped you understand by adding them to the comments or to your citations section.
Edit the client side code to use your AWS Instance’s public IP as the host. Commit and push your changes.
Run (compile as well depending on language) the server code on your AWS instance.
Run (compile as well depending on language) the client code on your personal system - laptop / desktop / virtual machine.
Send messages to the server from the client. Add a screenshot(s) to your lab showing the communications between the client and server.

Resources

Part 3 - Security

Your AWS instance is protected by a firewall via an AWS tool called Security Groups. The default rules created allow broad access (e.g., any IP on any port).

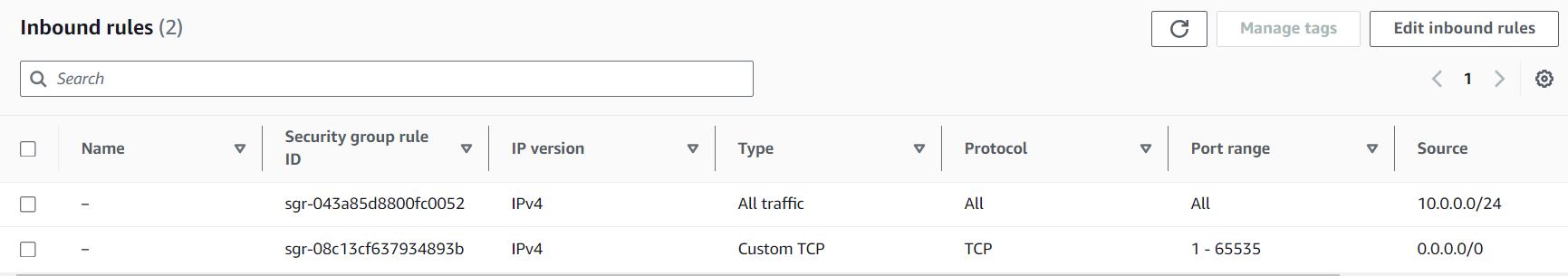

Default Security Group Rules

Your instance runs SSH (TCP on port 22) and Apache HTTP Server (TCP on port 80). In Part 3, you’ll play with running a program that listens on another port - 8080.

SSH enables secure shell access - access to use this service should be limited to trusted network devices or devices on trusted networks
Apache serves web content - typically is you host a webpage you want the world (any network device) to be able to request to view the content

Know trusted IP ranges:

We are going to consider sources from Wright State University’s network to be trusted
- 130.108.0.0/16 = all IPs in range 130.108.0.0 to 130.108.255.255 - all IPs in the network block must start with 130.108
We are going to consider your home public IP address to be trusted
- This should use a /32 CIDR block - as in only this IP in allowed / only host IP in the network block
- Hint: remember how to view query for your public IP from Part 1

Understand other ranges:

One of your rules will ask you to allow any IP, or 0.0.0.0 - 255.255.255.255 - what CIDR block will you need to use?
Experiment with Subnet Calculator

AWS Navigation:

Start Lab, open AWS console.
Go to EC2 > Security Groups > Select ceg2350-Lab1SecurityGroup.
Edit Inbound Rules only.

Revise Inbound Rules in Security Group ceg2350-Lab1SecurityGroup:

Remove original rules.
Allow SSH from WSU IPs
Allow SSH from your home public IP
Allow ICMP from WSU IPs
Allow ICMP from your home public IP
Allow HTTP (port 80) from any IP
Allow port 8080 from any (or trusted) IPs

Describe how you validated your rules are working.

When doing security testing, a base a validation testing is:
- Something expected to work
- Something expected to not work

If you break access - can no longer ssh to your instance - take a screenshot of your rules so you can get assistance, “reset” to default rules shown in the Default Security Group Rules image and try again.

Part 4 - Server Testing

The two things we generally ask about servers are: “Is it responding?” and “Is the service available?”.

In this exercise, you will run a test suite of commands against each IP / URL in the table below, document your findings in a results table, and answer reflection questions based on what you discover.

Test Servers

Server IPs	Domain Names	URLs
`8.8.8.8`	`dns.google`
`5.9.243.187`	`wttr.in`	`https://wttr.in`
Your AWS instance public IP
`34.117.59.81`	`ipinfo.io`	`https://ipinfo.io`

Test Suite

Run the following commands against each IP / domain name / url as appropriate in the table above.

Test	Command	What to observe
ICMP Reachability	`ping -c 10 <IP / Domain Name>`	Does the server respond?
HTTP Request	`curl -v http://<IP / Domain Name>`	Response code, headers, content
HTTPS Request	`curl -v https://<IP / Domain Name>`	Response code, SSL errors, redirects
Forward DNS Lookup	`nslookup <Domain Name>`	Does it resolve to one or more IPs?
Reverse DNS Lookup	`nslookup <IP>`	Does it resolve to a domain name?

Reflection questions:

ICMP and Firewalls: Why do some IPs not respond to ping even though they have active services running? What does this tell you about their firewall configuration?
HTTP vs HTTPS: Using wttr.in, compare the results when you curl -v http://<IP / Domain Name> versus curl -v https://<IP / Domain Name> for the same server. What differences did you observe? Why?
Raw Packet Capture: In a new tab, but on the same system you are using to run the curl commands, run a raw packet viewer for wttr.in: sudo tcpdump -i any -nn -A port 80 or port 443 and host <IP / Domain Name>. In another tab, curl using http and https, watching the packet dump after each curl request. Why can you “read” the weather info from the http request but not the https request?
DNS Lookup: When using nslookup, which IPs resolved to domain names and which domain names resolved to IPs? Why might this matter?
Troubleshooting: How would you use these commands if someone reported “the server is down”? What would be your troubleshooting strategy?

Part 5 - Citations and Resources

Any resource that you use that contributes to your understanding of exercises in this lab should be cited in the Citations / Resources section of your lab answers. You may refer to your own notes (if they are digitized into GitHub), course notes, or external resources / websites.

To add citations / resources, provide the reference / link and a summary of what it assisted you with.

If generative AI was used, include which generative AI system was used, what prompt(s) you fed it, and a summary of what it assisted you with.

Since the networking command table and the socket program already asked for resources, you only need to cite additional resources used in completing the other lab taskings.

Extra Credit - Tattle Tale

auth_logs.csv is a cleaned up version of standard SSH logs, and contains only the username used in the connection attempt and the IPv4 address the attempt came from. Take the provided data and give me 2 reports:

the top 5 IP addresses that generated connection attempts and how many attempts they made
the top 5 usernames used and how many times they were used

Your reports must contain the set of commands used to create the reports.

Note: if you are curious about how I parsed auth.log to generate the csv file, you can check out my documentation here - there are likely prettier ways to do it.

Submission

Verify that your GitHub repo has a Lab12 folder with at minimum:
- README.md
- Java or python client code with comments / corrected IP ref
- Java or python server code with comments
In the Pilot Dropbox, paste the URL to the Lab12 folder in your GitHub repo
- URL should look like: https://github.com/WSU-kduncan/ceg2350-YOURGITHUBUSERNAME/tree/main/Lab12

Rubric

Your files should be cleanly presented in your GitHub repository. Citations should be included as needed. Include which generative AI system was used and what prompts were used if generative AI was used.
